Causes Of Common Failures Of SKF Motor Bearings

Source:  skf bearing  Time:  2021-05-14
Bearing, as one of the important parts in the motor, its performance will directly affect the normal operation of the locomotive. When the bearing is broken, damaged and sintered, it will seriously affect the driving safety of the locomotive. Therefore, the motor bearing is also very important for the locomotive. Based on the understanding of motor bearings, share common causes of motor bearings and corresponding control measures.

Analysis of common failure causes of motor bearings:

1. The quality of the bearing itself

The bearing has problems before unpacking and assembly, such as loose cage rivets, cage deformation and bumps, scratches on the rollers or raceways, and even the bearings are rusted. Since the bearings are inspected by random inspection after the production is completed, individual bearings with these defects are likely to be loaded and used as qualified products. Once loaded and used, the bearing will inevitably be alarmed.

2. Improper assembly leads to bumps on the bearing

When assembling motor bearings, a hydraulic machine is generally used to press the outer ring of the bearing into the bearing chamber. If biased during the press-in process, the outer ring is likely to be deformed and damaged. It is not allowed to use percussion to install the bearing into the bearing chamber. When the rollers of the inner ring and outer ring are assembled, if there is any deviation, it is easy to produce axial scratches on the roller and raceway surfaces, which will cause an alarm when the bearing is running. For example, when the DF11-0293 locomotive was accompanied by a test, a 34-bit bearing first-level shock alarm occurred. After returning to the factory, Tang Zhi software analyzed that, in addition to one shock alarm, this position also issued 6 single-shot early warnings. The frame car replaced the small bearing at the non-drive end of the 3D traction motor.

According to the analysis of dismantling and inspection:

1) There is an equilateral triangle bump on the edge of the raceway surface of the inner ring of the bearing, which is caused by the bump between the roller and the raceway surface of the inner ring during assembly.

2) There are obvious circumferential scratches on the inner ring of the bearing, which is caused by foreign matter entering the bearing.

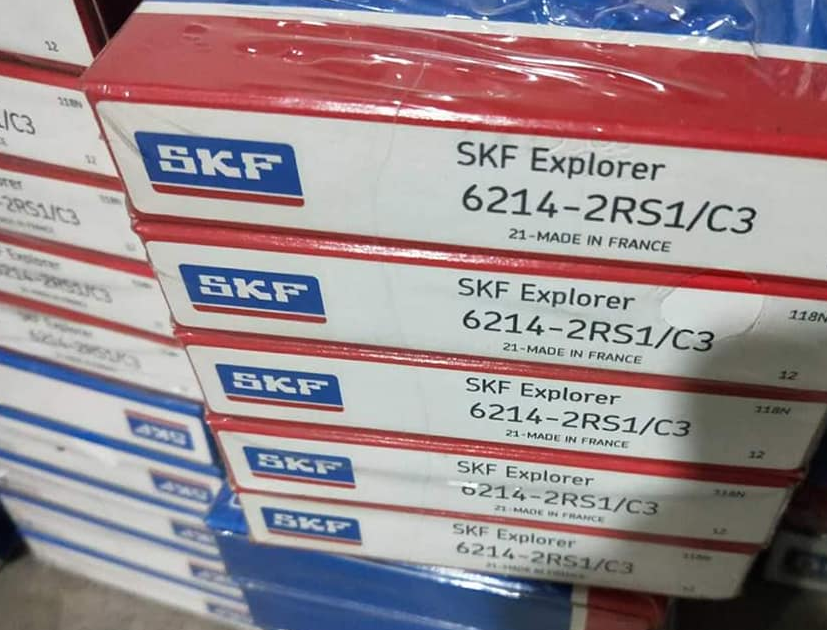

Click here for more information about SKF
6214-2RS1/C3.


3. The impact of cleanliness

3.1 Grease cleanliness

Bearings have high requirements for the cleanliness of grease. If the added lubricating oil is mixed with particles such as quartz sand, iron filings, etc., it will cause permanent damage to the bearing during the operation of the bearing, which will seriously affect the use of the bearing.

3.2 Cleanliness of parts

Bearing-related parts include bearing caps, oil guide tubes, end cover bearing chambers, etc. If these parts are not thoroughly cleaned, impurities will be mixed into the bearing during assembly, which will affect the use of the bearing.

3.3 Assembly environment

When the bearing is assembled, the surrounding environment has a lot of dust, which is mixed into the bearing chamber or bearing grease during the bearing assembly process, which will also cause bearing failure

4. Current corrosion

After the bearing is assembled and in use, due to external reasons, an unknown current flows through the bearing, which will cause current burning points on the bearing raceway surface and rollers, which will affect the service life of the bearing. This type of current corrosion is generally nothing more than two types. One is that after the completion of the locomotive, the incorrect lap position of the return wire during the electric welding construction causes the bearing to be energized and causes electric corrosion; the other is that the motor itself generates leakage current or the motor is running. After the blasting occurs, electric current flows through the bearing to produce electric corrosion.

5. Use and maintenance

When the locomotive was used in the section, it did not receive normal and effective maintenance. Such as: regular quantitative refueling is not carried out, the cleanliness of refueling and the amount of refueling are not controlled, the type of grease added is not uniform, and problems such as bearing oil leakage occur from time to time.
