SKF Ball Bearing and Ball Bearing Unit Installation

Source:  skf bearing  Time:  2021-04-07

About SKF ball bearings and ball bearing units


SKF ball bearings and ball bearing units are assembled in units. Before installing, you should not try to disassemble the bushing and remove the mounting ring from the bearing. When installing or removing ball bearings and bearing units, SKF recommends using a sling or dry jack to unload all weight from the bearing and secure the shaft to prevent it from rotating.


SKF ball bearing and ball bearing unit installation steps


1. Use emery cloth or fine file to remove all burrs on the shaft, wipe with a cloth, and check the shaft diameter.


2. Install all components between two bearings or bearing unit positions on the shaft.


3. Clean the base of the bearing unit and its supporting surface to ensure that the supporting surface is smooth and smooth. The flatness should be within the IT7 standard and the roughness Ra≤12.5mm. For the vertical bearing block unit, if the height must be adjusted by the gasket, the gasket must extend to the entire length and width of the unit base.


4. Slide the first bearing unit onto the shaft to ensure that it can contact its mounting ring. For the vertical housing unit, tighten the mounting bolts or nuts, but do not tighten them. For flanged bearing units, the centering groove on the back of the bearing housing should be used to fasten it to the mating surface of the mechanism when feasible.


5. For the vertical bearing housing unit, carefully align the two units with the shaft, and then fully tighten the mounting bolts on the bearing housing base. For the flange bearing unit, use the centering groove on the back of the bearing seat to fasten it to the mating surface of the mechanism when feasible.


6. Align the shaft axially on the bearing arrangement and rotate it a few times if feasible.


7. Fix the first bearing unit to the shaft by positioning the locking ring, so that the grub screw is directly located in the opposite direction of the opening on the shaft sleeve. Hold the short handle of the Allen key and tighten the screws manually.


8. Then tighten each flat head screw, starting from the screw opposite the opening of the bushing, until the long handle of the hex wrench touches the torque indicator provided, or until the torque value recommended in Table 2 is reached.


9. Make sure that the shaft rotates smoothly and the bearings will not block. If the shaft does not rotate smoothly, loosen one of the bearing units according to the disassembly instructions, and then fix it again.


10. If necessary, snap the end cover into place.

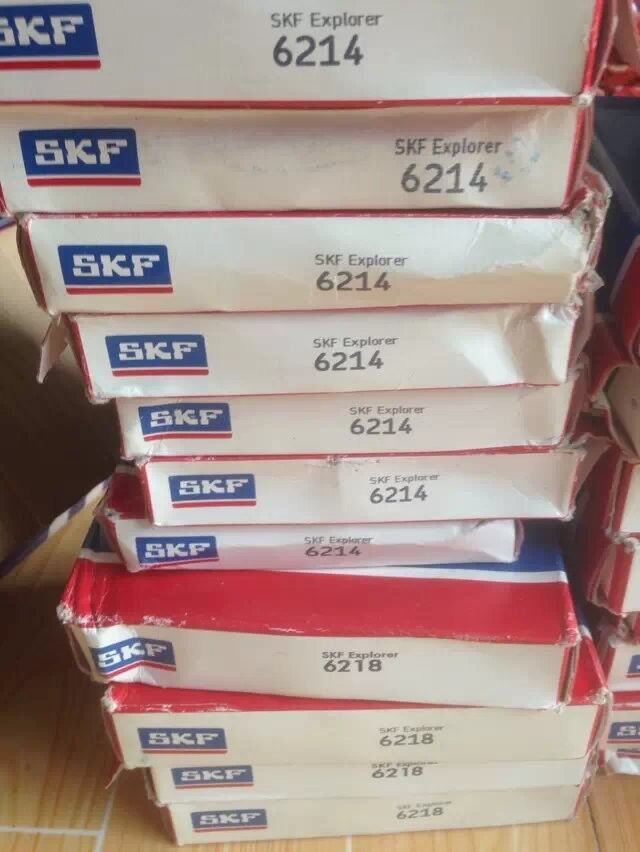

Click here to buy SKF Bearing
6214. Eric Bearing LTD has enough stock for it.


SKF ball bearing and ball bearing unit disassembly steps


1. Abrasive cloth can be used to clean the extended part of the shaft to remove rust or repair surface damage.


2. Loosen all screws on the first bearing unit.


3. Gently tap the edge of the sleeve of the bearing mounting ring until the locking system releases the shaft. Or you can tap the end face of the bearing inner ring on the opposite side of the mounting ring.


4. Loosen and remove the mounting bolts, and slide the bearing unit off the shaft.


5. Repeat steps 1 to 4 to disassemble the second bearing unit.


SKF ball bearings can be inserted into any SKF Y housing


To do this, in order to avoid damaging the edge of the sleeve, use a tube or wooden rod slightly smaller than the inner diameter of the bearing. At the same time, avoid excessive pressure on the bearings when turning in place. Make sure that the rotating torque is not transferred to the opening area of the bushing.


When installing the bearing, make sure that one of the relubrication holes on the bearing coincides with the relubrication groove in the bearing housing, and cannot coincide with the installation groove in the bearing housing, otherwise the grease will leak.
