Reasons And Countermeasures Affecting The Use Of NSK bearing

Source:  skf bearing  Time:  2020-12-04

NSK bearing use factors mainly refer to whether the installation adjustment, use and maintenance, maintenance and repair meet the technical requirements. According to the technical requirements of bearing installation, use, maintenance, and maintenance, monitor and inspect the load, speed, working temperature, vibration, noise and lubrication conditions of the bearing in operation. If an abnormality is found, immediately find the cause and make adjustments to make it Back to normal. The installation condition is one of the most important factors in the use factors. The bearing is often caused by improper installation and the stress state between the parts of the entire NSK bearing changes. The bearing operates in an abnormal state and ends its service life early. The main internal factors are It refers to the three major factors that determine the quality of NSK bearings, such as structural design, manufacturing process and material quality.



The metallurgical quality of NSK bearing materials used to be the main factor affecting the early failure of rolling bearings. With the progress of metallurgical technology (such as vacuum degassing of bearing steel, etc.), the quality of raw materials has been improved. The proportion of raw material quality factors in bearing failure analysis has dropped significantly, but it is still one of the main factors affecting bearing failure. The proper selection of materials is still a factor that must be considered in the failure analysis of NSK bearings.



The manufacturing of NSK bearings generally involves multiple processing procedures such as forging, heat treatment, turning, grinding and assembly. The rationality, advancement and stability of each processing technology will also affect the life of the bearing. Among them, the heat treatment and grinding processes that affect the quality of finished NSK bearings are often more directly related to the failure of the bearing. In recent years, studies on the deteriorating layer of the working surface of NSK bearings show that the grinding process is closely related to the surface quality of NSK bearings.



The main task of NSK bearing service life analysis is to find out the main factors causing bearing failure based on a large number of background materials, analysis data and failure modes, so as to propose improvement measures to extend the service life of NSK bearings and avoid bearing occurrence Sudden early failure.
Click here for more information about NSK Bearing

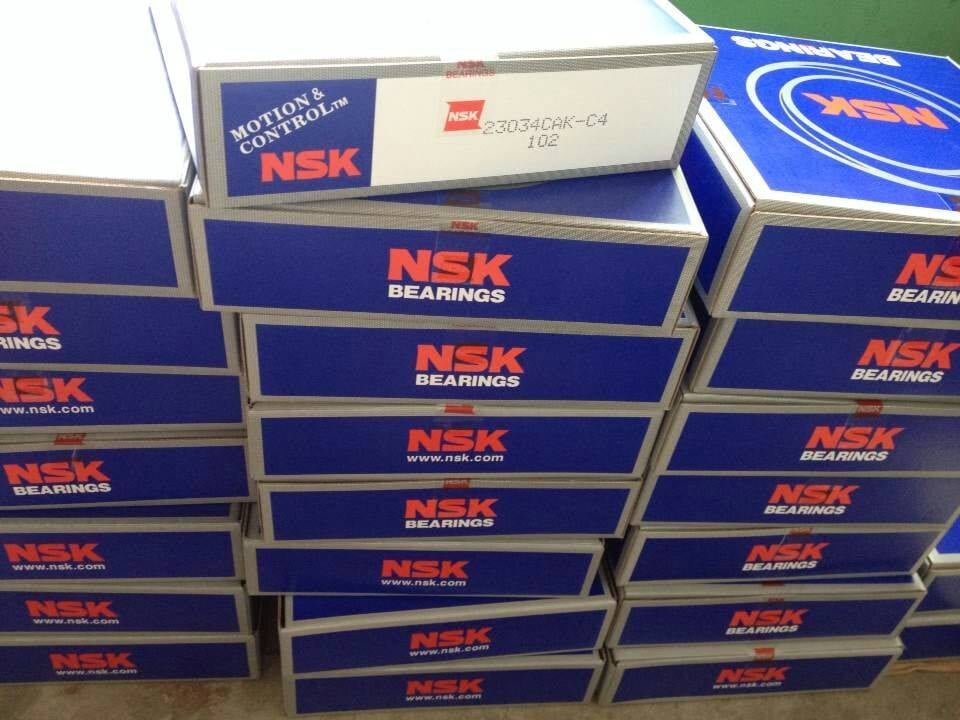

23034CAK-C4. Eric Bearing Limited provides various brand of bearings. Welcome to contact us.





Strong metallic tone



   1. Abnormal load: select the appropriate assembly clearance and preload



   2. Poor assembly: improve the machining accuracy of the shaft and improve the installation method



   3. Insufficient lubricant: supplement or use suitable lubricant



Regular tone



   1. Foreign matter causes channel corrosion, indentation, and scars: clean related parts and use clean grease



   2. Channel spalling: fatigue wear, replace NSK bearing



Irregular sound



   1. Foreign matter intrusion: clean related parts and use clean grease



   2. Excessive clearance: pay attention to fit and choose appropriate clearance



   3. Steel ball scars: the steel ball is peeled off due to fatigue or foreign matter jams, replace the NSK bearing



Abnormal temperature rise



   1. Too much lubricant: reduce lubricant



   2. Insufficient or unsuitable lubricant: add lubricant or choose suitable lubricant



   3. The mating surface creep or the sealing device is too large: the outer diameter or inner diameter of the NSK bearing is corrected, and the sealing form is changed



The rotation vibration of the shaft is large



   1. Spalling: fatigue spalling, replace NSK bearing



   2. Poor assembly: improve the machining accuracy of the shaft and improve the installation method



   3. Foreign matter intrusion: clean related parts and use clean grease



Lubricant leakage and discoloration



   1. Too much lubricant: reduce lubricant



   2. Foreign matter invasion: cleaning related parts
