Causes of Vibration During Operation of NTN TRB bearings

Source:  skf bearing  Time:  2021-04-12

Generally speaking, the rolling bearing itself does not generate noise. The commonly felt "NTN tapered roller bearing noise" is actually the sound effect of the bearing directly or indirectly vibrating with the surrounding structure. This is why many times the noise problem can be regarded as a vibration problem involving the entire NTN tapered roller bearing application.



Excitation due to changes in the number of loaded rolling elements


When a radial load is loaded on an imported bearing, the number of rolling elements carrying the load will change slightly during operation, that is: 2-3-2-3... This causes a deviation in the load direction. The resulting vibration is inevitable, but it can be reduced by axial preloading, which is loaded on all rolling elements (not applicable to cylindrical roller bearings).



Component waviness


In the case of a close fit between the NTN tapered roller bearing ring and the bearing housing or the transmission shaft, the NTN tapered roller bearing ring may deform due to the shape of the adjacent component. If deformation occurs, vibration may occur during operation. Therefore, it is important to machine the bearing housing and drive shaft to the required tolerances.



Partial damage


Due to operation or installation errors, a small portion of NTN tapered roller bearing raceways and rolling elements may be damaged. During operation, rolling over damaged NTN tapered roller bearing components will produce a specific frequency of vibration. Vibration frequency analysis can identify damaged bearing components.



Vibration behavior in applications


In many applications, the stiffness of NTN tapered roller bearings is the same as that of surrounding structures. Because of this feature, as long as the NTN tapered roller bearings (including preload and clearance) and their configuration in the application are properly selected, it is possible to reduce the vibration in the application.

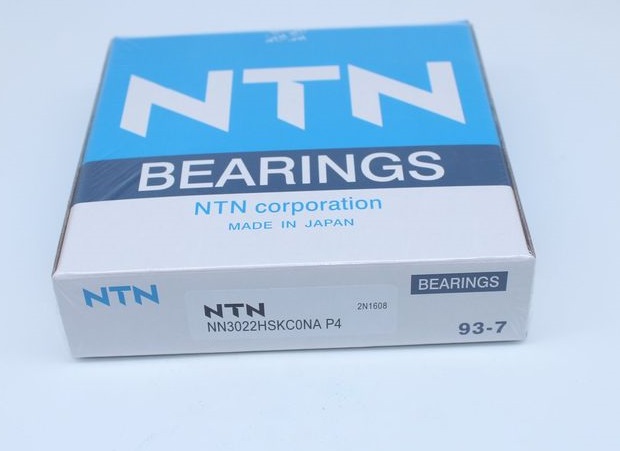

NTN Bearing
NN3022HSKC0NAP4 online, contact us for more details about it.



There are three ways to reduce vibration:


1. Remove critical excitation vibration from the application;


2. Restrain the critical excitation vibration between the excitation component and the resonance component;


3. Change the stiffness of the structure, thereby changing the critical frequency.



It is of great significance to study the formation of NTN bearing damage and noise generation



In the process of using NTN bearings, due to its own quality and external conditions, its load capacity, rotation accuracy and friction reduction performance will change. When the performance index of the bearing is lower than the use requirements and cannot work normally, it is called If the bearing is damaged or fails, once the bearing is damaged or other unexpected conditions, various abnormal phenomena such as the machine and equipment stopping and the function being damaged will appear.


Therefore, it is necessary to investigate and deal with the causes in the short term and take corresponding measures. Of course, the damage of NTN bearings is much more complicated than the damage of general mechanical parts. The characteristics of rolling bearing damage are many manifestations, and the reasons are complex. Most of the internal factors of design and manufacturing are caused by improper use, for example: improper installation, poor lubrication, poor sealing and other external factors.



It is of great significance to study the formation and causes of NTN bearing damage. On the one hand, it can improve the use method, use the bearing correctly, give full play to the bearing's due efficiency, and on the other hand, help to develop new products with better performance. In addition to the precautions, installation methods, and operation monitoring of rolling bearings, this article focuses on the form and causes of bearing damage and the countermeasures to be taken.



Bearing noise is a problem that many brand bearings will produce, but the reason is the same. The following is Eric Bearing Limited to see what causes NTN bearing noise:


1. NTN bearings are mixed with impurities such as sand particles or carbon particles, dirt such as acids or paint,


2. NTN bearings are mixed with water. Play a role in corrosion;


3. The clearance of the NTN bearing is too small (the fit is not selected properly)


4. The type of lubricating oil or grease is not selected correctly; oil or grease leaks through the seal)


5. Lack of lubrication (the oil level is too low. Or the seat hole is not straight)


6. NTN bearing is flattened by the seat hole (the seat hole is not well rounded.


7. The horn on the bottom of the NTN bearing seat is uneven (causing deformation of the seat hole or even cracks in the NTN bearing seat)


8. There are debris in the hole of NTN bearing seat (there are chips left.


9. Eccentricity of the sealing ring (touching adjacent parts and causing friction)
